Fan control module signal
Fan control module signal

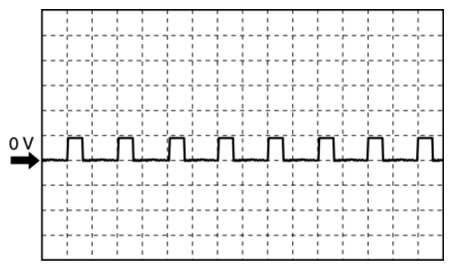

Fig 1: Fan Control Module Signal Graph
PCM terminals
1R (+)-body ground (-)
1AE (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle after warm up (no load, P/S off, A/C off)
