Circuit Open/Short Inspection: Notes

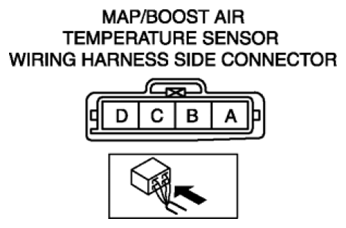

Fig 1: Identifying MAP/Boost Air Temperature Sensor Wiring Harness Side Connector
G08245057

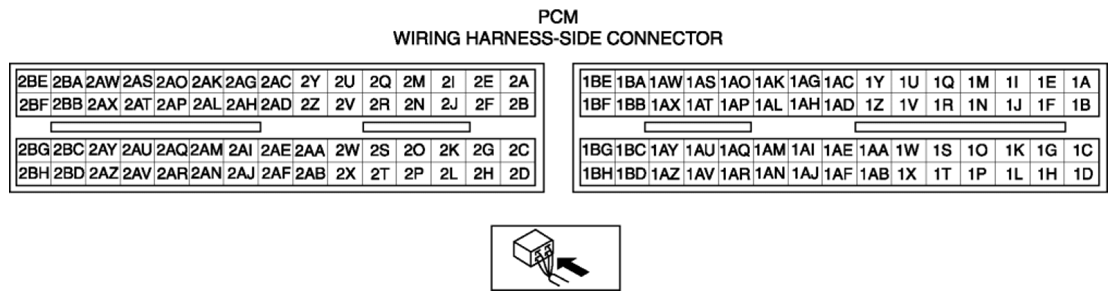

Fig 2: Identifying PCM Wiring Harness Side Connector
G08245058
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
