Knock Sensor (KS) Removal/Installation

CAUTION:

Be careful not to impact the sensor.
Verify that there is no debris between the sensor and the cylinder block before installing.

Disconnect the negative battery cable.
Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION )
Remove the KS attachment bolt to remove the KS.

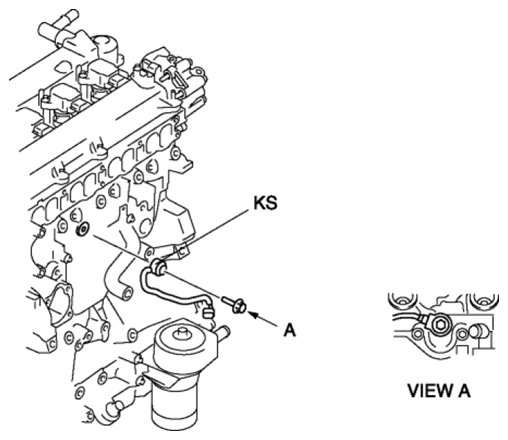

Fig 1: Identifying Knock Sensor Attachment Bolt And Knock Sensor
Install in the reverse order of removal.
- 16-24 N.m {1.7-2.4 kgf.m, 12-17 ft.lbf}
