Circuit Open/Short Inspection: Notes

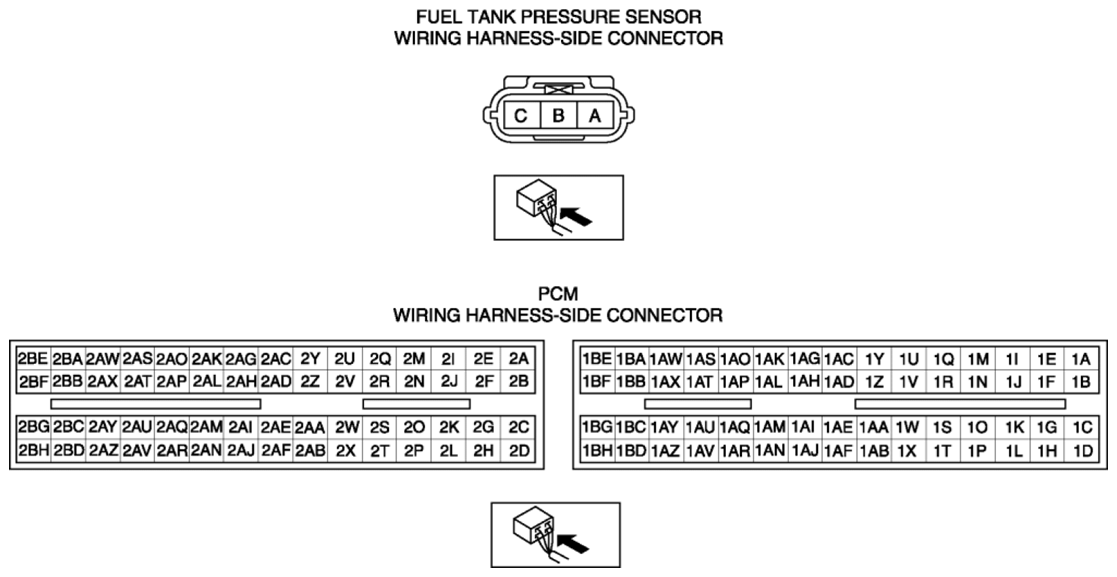

Fig 1: Identifying Fuel Tank Pressure Sensor Wiring Harness Side Connector And PCM Wiring Harness Side Connector
G08245095
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Disconnect the fuel tank pressure sensor connector.
  3. Inspect the following wiring harnesses for open or short. (Continuity check)
