Fuel Pressure Sensor Inspection: Notes

NOTE:
  • Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See HOW TO USE THIS MANUAL .)
  1. Connect the M-MDS to the DLC-2.

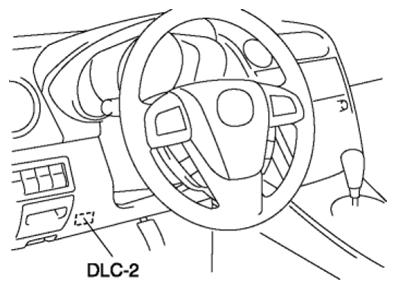

    Fig 1: Identifying DLC-2 Location
    G08245070
  2. Turn the ignition switch to the ON position (Engine off).
  3. Select the FUEL_PRES PID on the M-MDS.
  4. After warming up the engine, verify that the FUEL_PRES PID is at the standard value under the following conditions.
    • If not as verified, replace the fuel delivery pipe.
    Step Condition FUEL_PRES PID
    1
    • Idle
    • 90 s after engine is started
    		 Approx. 3 MPa
    2
    • Idle
    • Spill valve solenoid valve connector is disconnected
    		 Approx. 530 kPa
  5. After connecting the spill valve control solenoid valve connector, clear the DTC.
