CX-7 s Touring, 2.3L Eng VIN L, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [2.3L L3 With TC]
>>
Control System Wiring Diagram
Control System Wiring Diagram

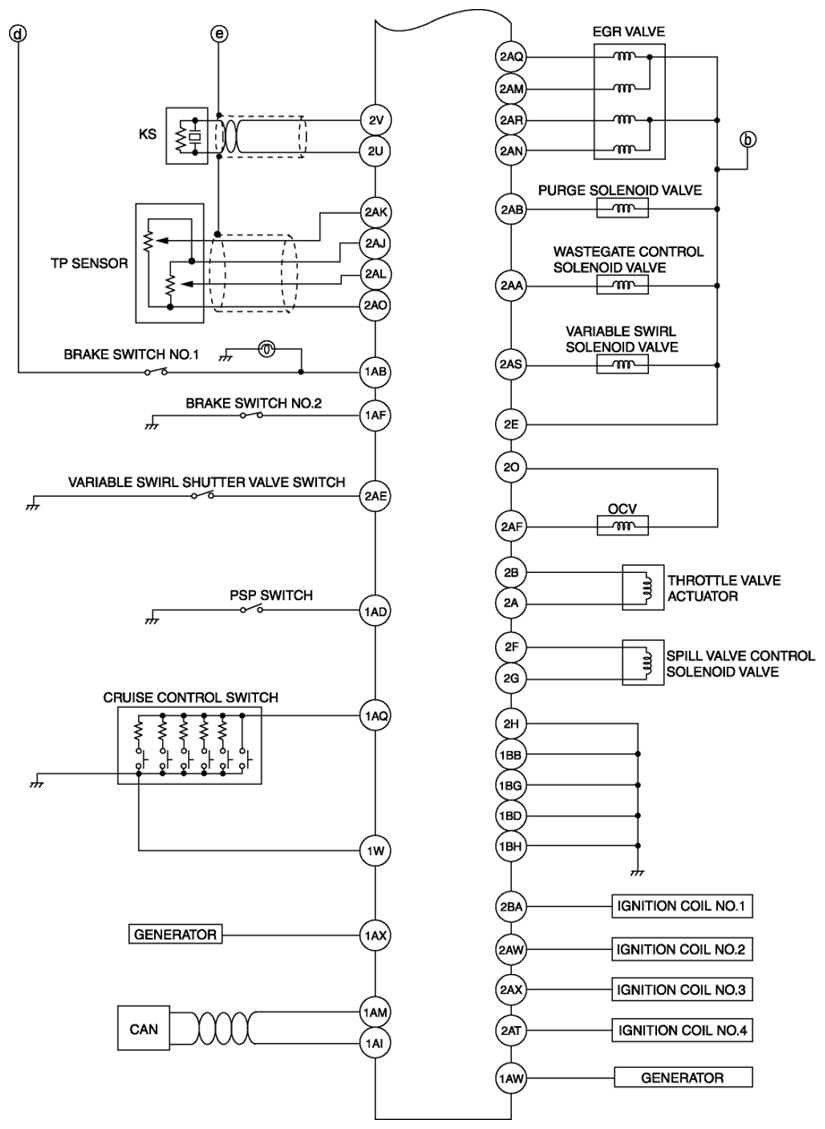

Fig 1: Control System Wiring Diagram [L3 With TC] (1 Of 2)

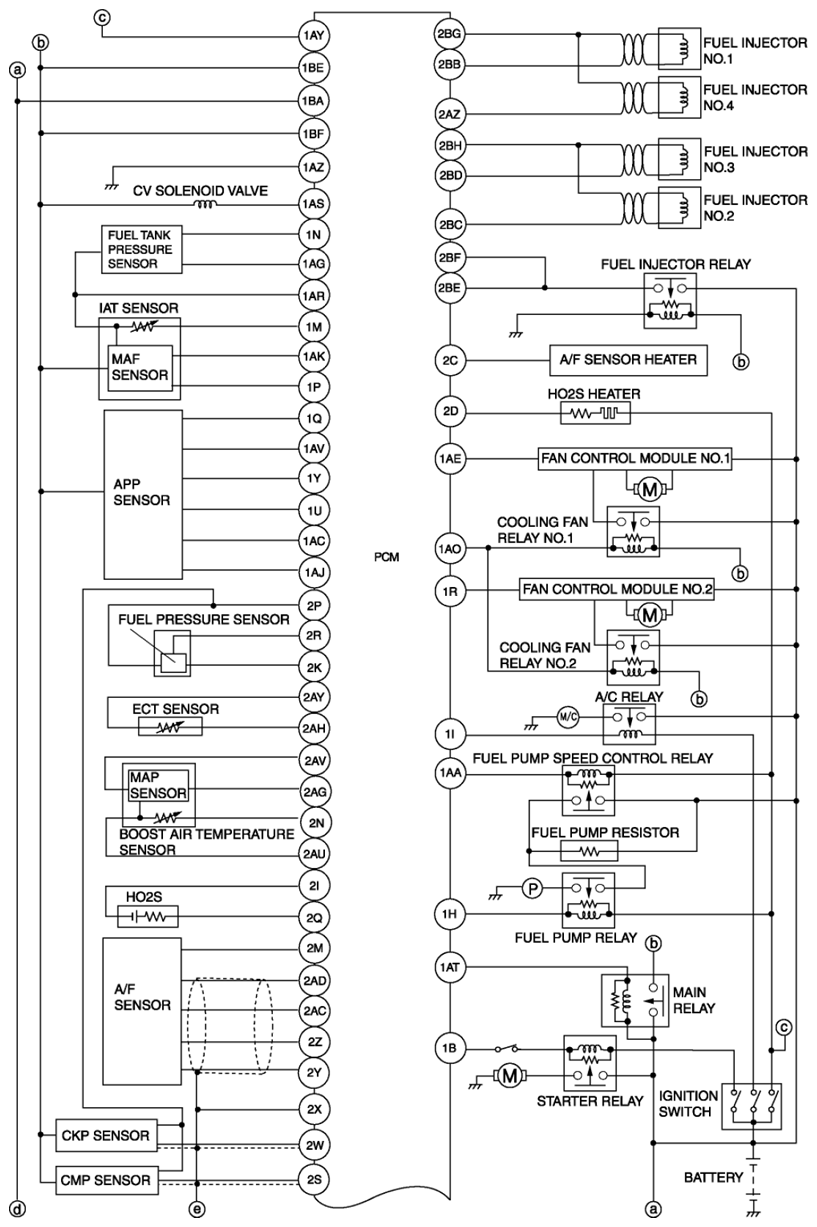

Fig 2: Control System Wiring Diagram [L3 With TC] (2 Of 2)
