Circuit Open/Short Inspection: Notes

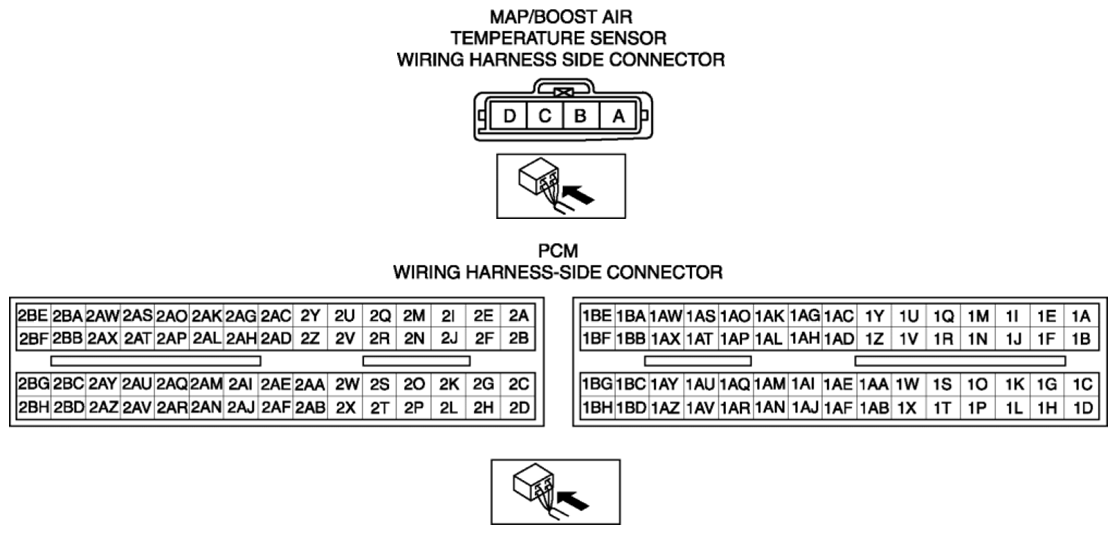

Fig 1: Identifying MAP/Boost Air Temperature Sensor Wiring Harness Side Connector And PCM Wiring Harness Side Connector
G08245061
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
