Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .)
Disassemble in the order indicated in the table.
Assemble in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

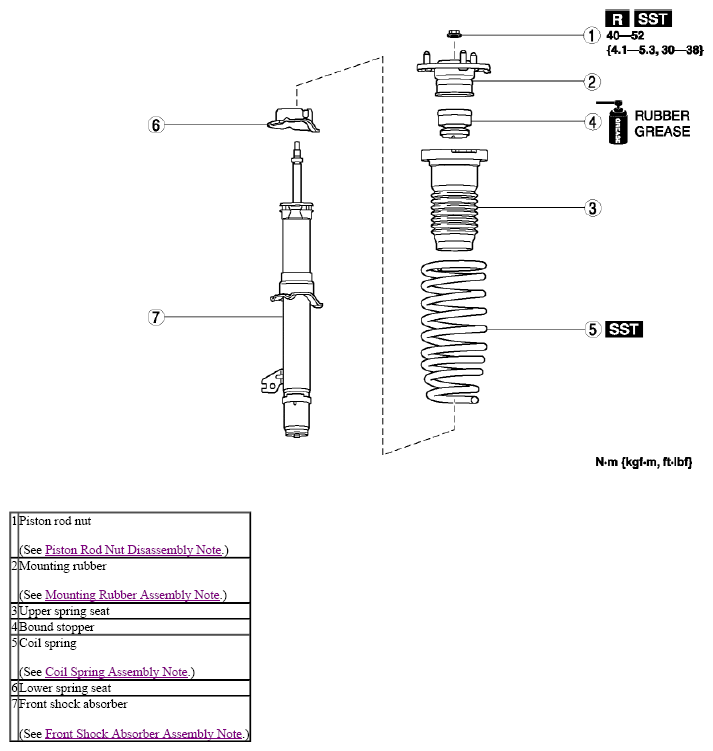

Fig 1: Front Shock Absorber And Coil Spring With Torque Specifications
