Mounting Rubber Assembly Note

  1. Install the mounting rubber stud bolt with its bolt head aligned with the dent of the upper spring seat.
    Fig 1: Mounting Rubber Stud Bolt
    G08140948
  2. Install the mounting rubber as shown in the figure.

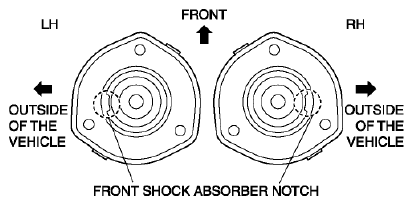

    Fig 2: Identifying Front Shock Absorber Notch Installation Position
    G08140949
