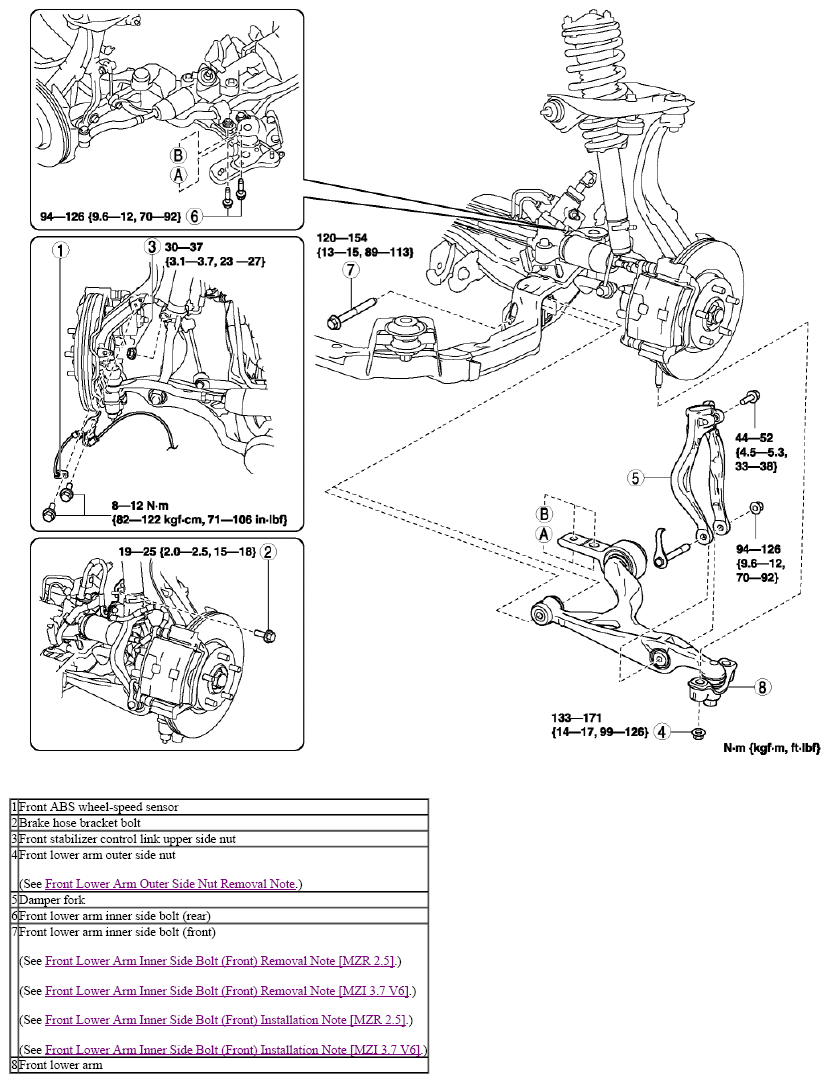

Front Lower Arm Removal/Installation: Notes
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.
- Remove the aerodynamic under cover No.2. (MZR 2.5) (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION .)
- For the vehicle with MZI 3.7 V6, working on the right side of the vehicle, remove the front pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect for front wheel alignment. (See FRONT WHEEL ALIGNMENT .)
