Walk-In Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Remove the front seat back trim. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .)
  4. Remove the connector.
  5. Remove the screw.
  6. Remove the walk-in switch.
  7. Install in the reverse order of removal.

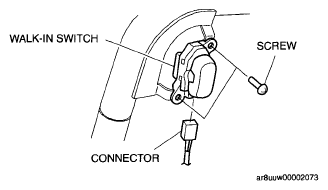

Fig 1: Identifying Walk-In Switch, Screw And Connector
G05985939Courtesy of MAZDA MOTORS CORP.
