Walk-In Switch Inspection

  1. Connect battery positive voltage to recliner motor terminal A or B, then verify that the walk-in switch operate as shown in the table.
    • If the walk in switch does not operate as indicated in the table, replace the recliner motor.
    Fig 1: Walk-In Switch Continuity Chart
    G05985940Courtesy of MAZDA MOTORS CORP.

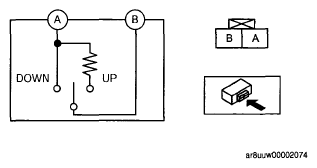

    Fig 2: Identifying Walk-In Switch Connector
    G05985941Courtesy of MAZDA MOTORS CORP.
