Position Memory Switch Inspection

  1. Disconnect the position memory switch connector.
  2. Inspect for continuity between the power seat switch connector terminals.
    • If not as specified, replace the position memory switch.
    Fig 1: Position Memory Switch Continuity Chart
    G04971211Courtesy of MAZDA MOTORS CORP.

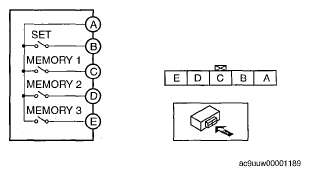

    Fig 2: Identifying Position Memory Switch Connector
    G04971212Courtesy of MAZDA MOTORS CORP.
