Seat Belt Location Index

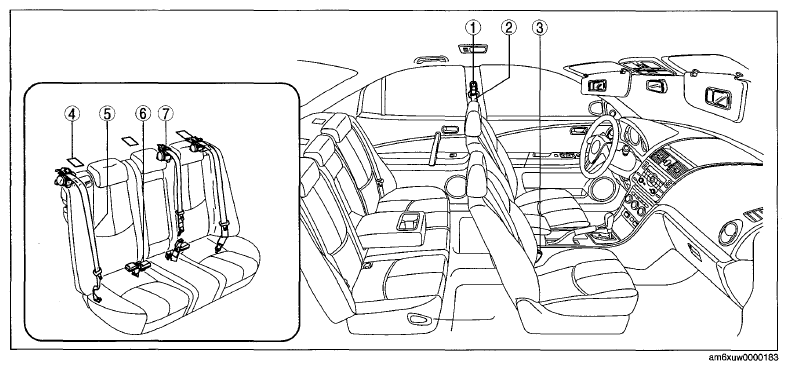

Fig 1: Seat Belt Components Location

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
2	Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .)
3	Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION .)
4	Child-restraint seat anchor (See CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION .)
5	Rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .)
6	Rear buckle (See REAR BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION .)
7	Rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
