Wheel Hub, Steering Knuckle Disassembly/Assembly: Notes

1. Disassemble in the order indicated in the table.
   WHEEL HUB AND STEERING KNUCKLE REFERENCE CHART



   1	Wheel hub component (See WHEEL HUB COMPONENT DISASSEMBLY NOTE .) (See WHEEL HUB COMPONENT ASSEMBLY NOTE .)
   2	Retaining clip
   3	Wheel bearing (See WHEEL BEARING DISASSEMBLY NOTE .) (See WHEEL BEARING ASSEMBLY NOTE .)
   4	Dust Cover (See DUST COVER DISASSEMBLY NOTE .) (See DUST COVER ASSEMBLY NOTE .)
   5	Steering knuckle
   6	Hub bolt (See WHEEL HUB BOLT DISASSEMBLY NOTE .) (See WHEEL HUB BOLT ASSEMBLY NOTE .)

2. Assemble in the reverse order of disassembly.

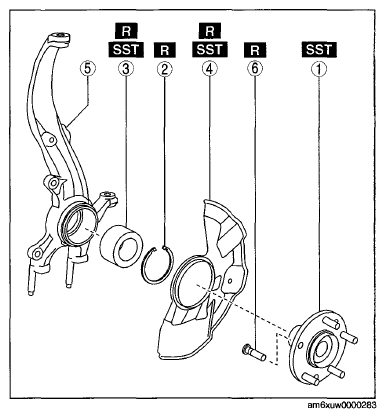

Fig 1: Exploded View Of Wheel Hub And Steering Knuckle

Courtesy of MAZDA MOTORS CORP.
