Steering Switch Removal/Installation

1. Disconnect the negative battery cable and wait for 1 min or more.
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
4. Remove the screw.

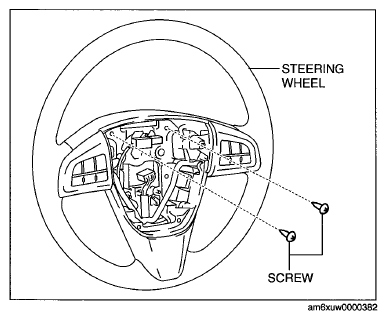

   Fig 1: Steering Wheel And Screws

   Courtesy of MAZDA MOTORS CORP.
5. Remove the wiring harness from the hook.

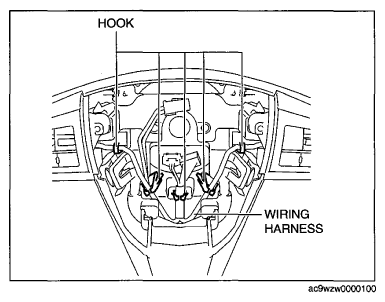

   Fig 2: Wiring Harness And Hook

   Courtesy of MAZDA MOTORS CORP.
6. Remove the screw.
7. Remove the steering cover.
   Fig 3: Steering Cover, Steering Wheel And Screw

   Courtesy of MAZDA MOTORS CORP.
8. Remove the screw.
9. Disconnect the connector.

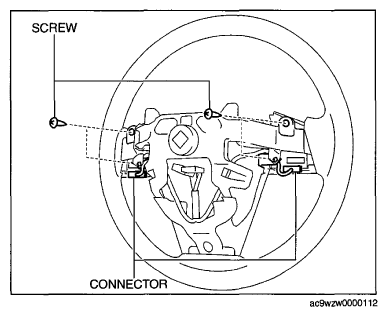

   Fig 4: Steering Connector And Screw

   Courtesy of MAZDA MOTORS CORP.
10. Remove the steering switch pins from the steering wheel.
11. Remove the steering switch.
12. Install in the reverse order of removal.

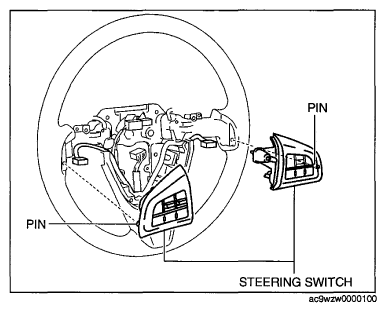

Fig 5: Steering Switch And Pins

Courtesy of MAZDA MOTORS CORP.
