Control System Device And Control Relationship Chart

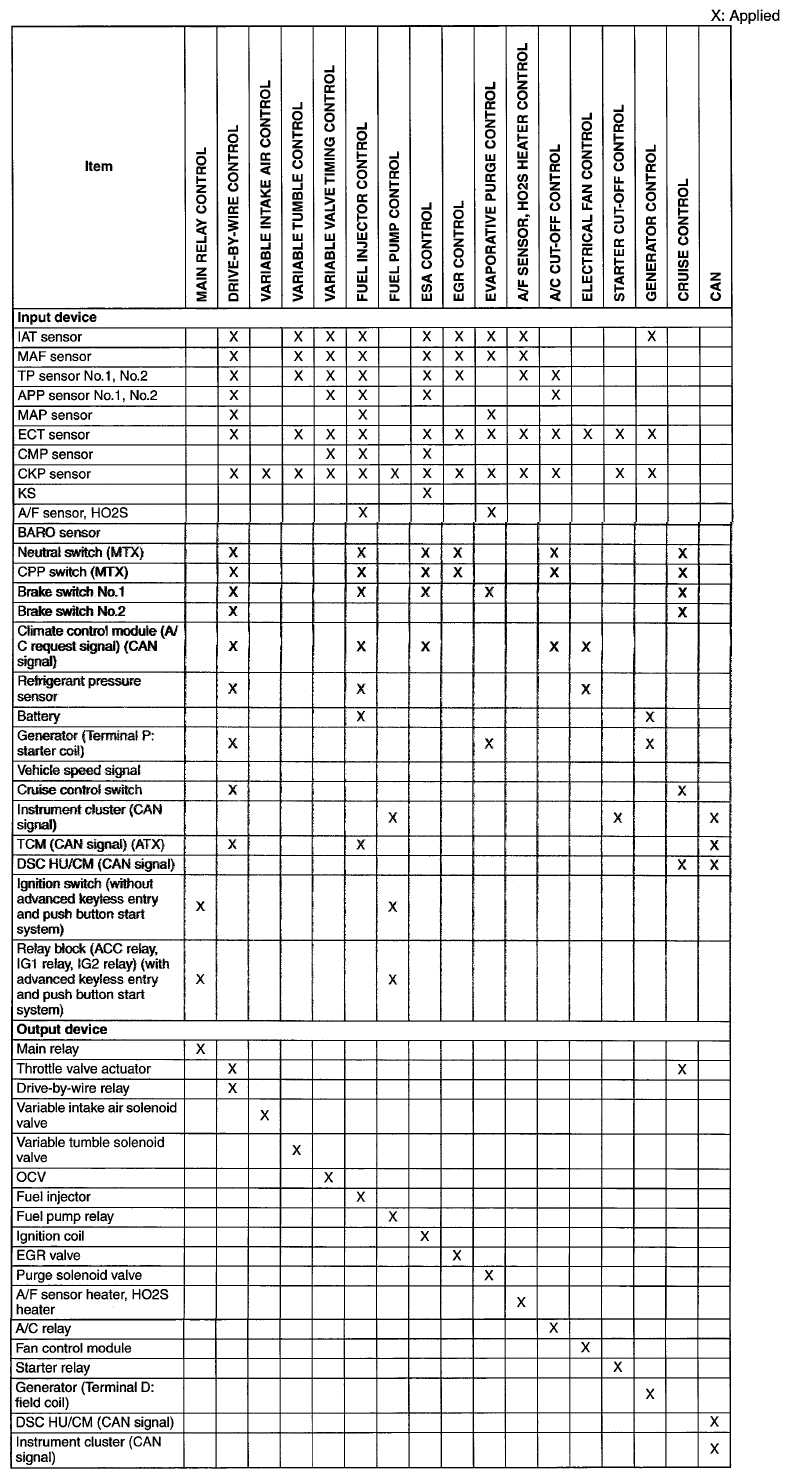

Fig 1: Control System Device And Control Relationship Chart

G07620282

Courtesy of MAZDA MOTORS CORP.
