Map Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table in illustration.

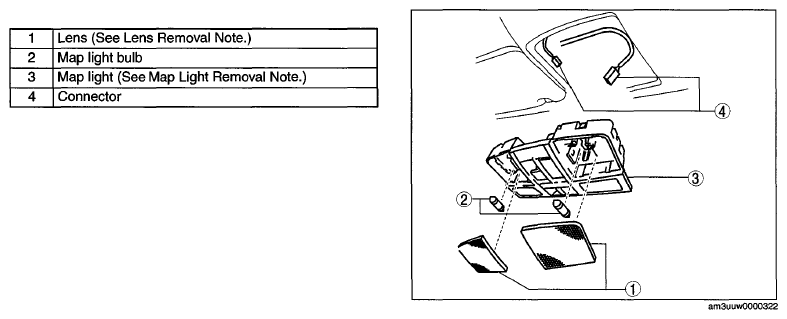

    Fig 1: Identifying Map Light Bulb, Map Light, Connector And Lens
    G06732210Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
