Map Light Inspection

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the map light terminals is as indicated in the table in illustration.

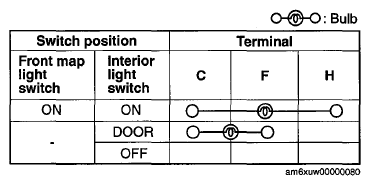

Fig 1: Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table in illustration, replace the map light.

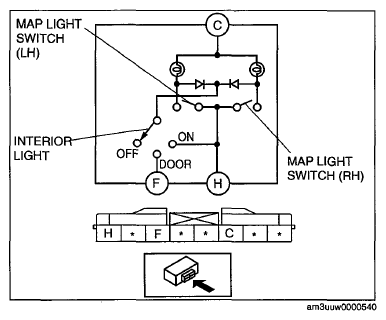

  Fig 2: Inspecting Map Light
  Courtesy of MAZDA MOTORS CORP.
