Lighting Systems Location Index

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

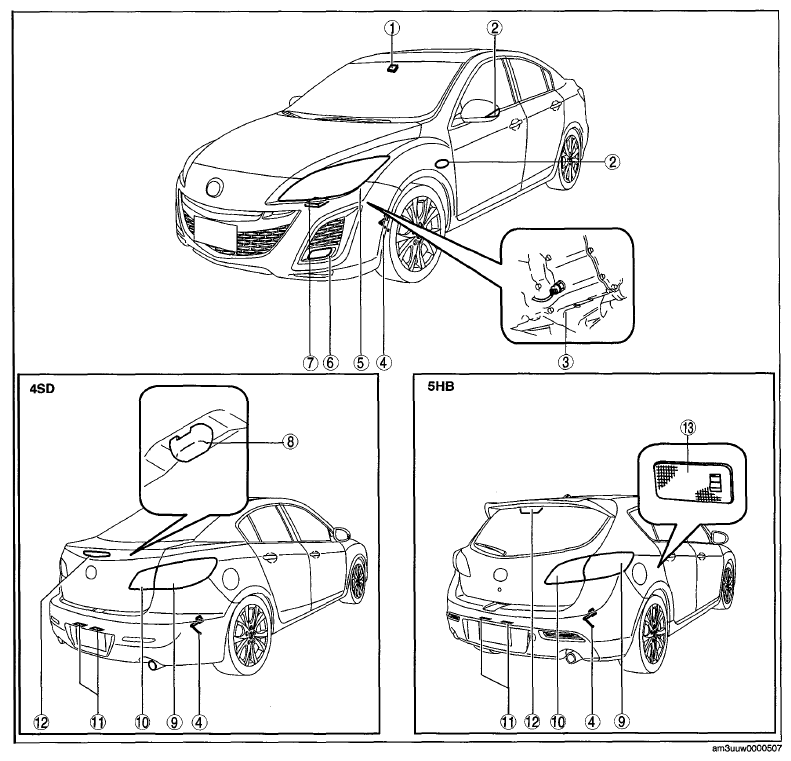

Fig 1: Identifying Lighting Systems Components Location (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

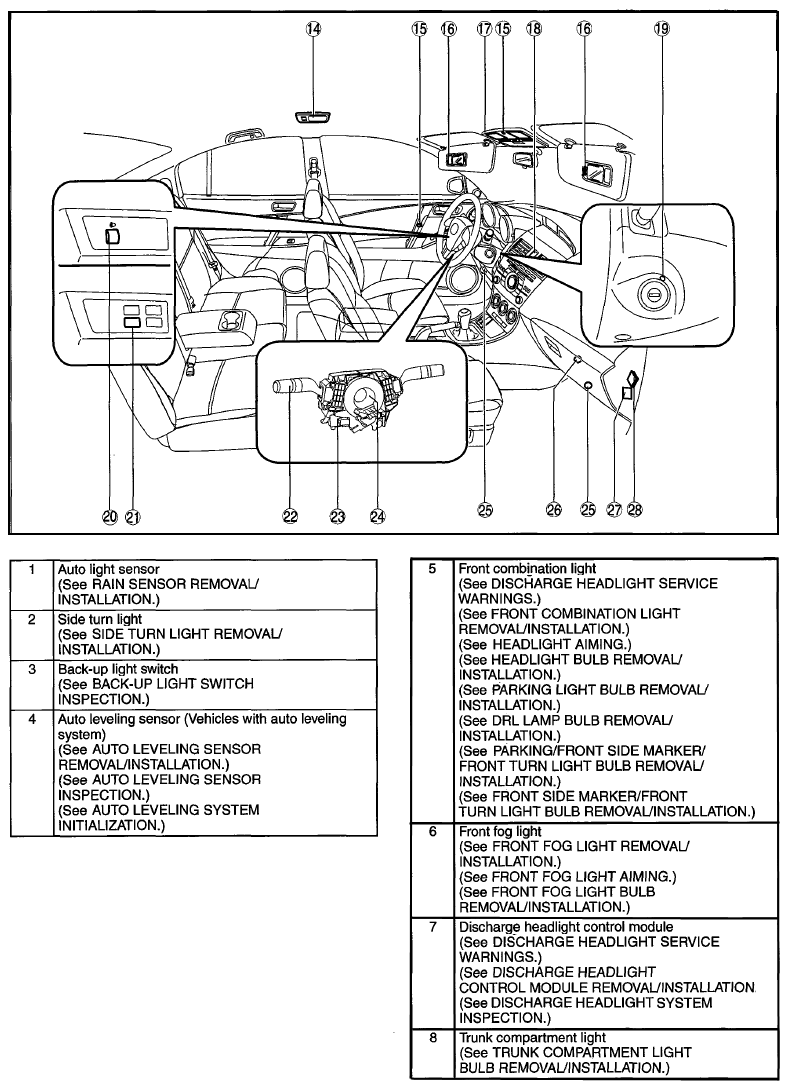

Fig 2: Identifying Lighting Systems Components Location (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

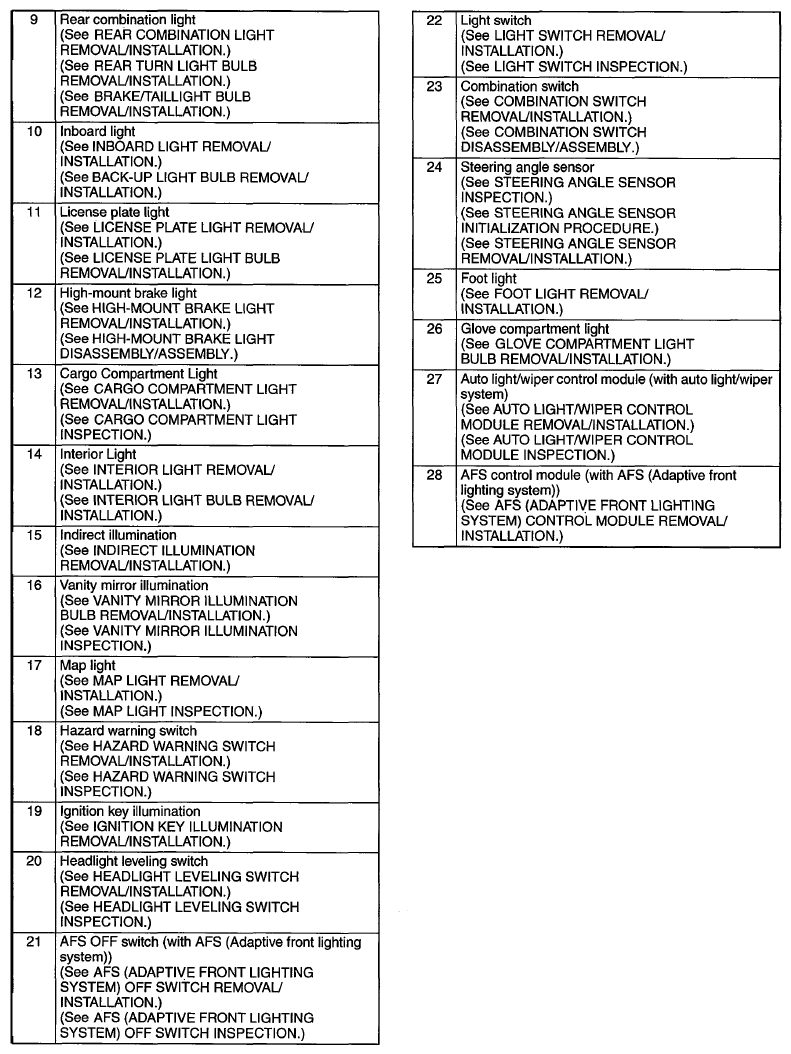

Fig 3: Identifying Lighting Systems Components Location (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
