Auto light system

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the PERSONALIZATION FEATURES SETTING PROCEDURE.

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initial screen of the M-MDS.
1. Select the "Module Programming"
Then, select items from the screen menu in the following order.
1. Select "Programmable Parameters"
2. Select "Exterior Lighting"

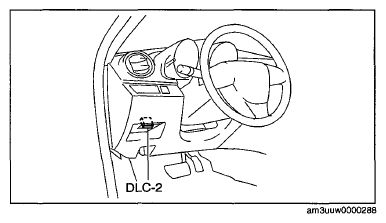

  Fig 1: Identifying Data Link Connector (DLC-2)
  Courtesy of MAZDA MOTORS CORP.

Select the item name, and then select option.

MAZDA MODULAR DIAGNOSTIC SYSTEM (M-MDS) DISPLAY REFERENCE

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting content	Control unit
Autolamp On Setting	The auto light system sensitivity can be adjusted.	Standard (Other)	Standard (Other)/Low (Other)	Auto light/wiper control module
