Light Switch Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
  4. Remove the screws shown in the illustration, then remove the light switch by pulling it in the direction of the arrow.
  5. Install in the reverse order of removal.

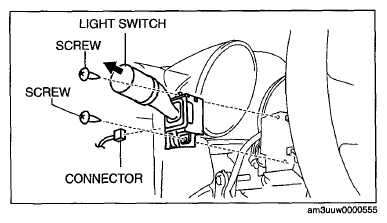

    Fig 1: Removing Light Switch
    G06732193Courtesy of MAZDA MOTORS CORP.
