Inboard Light Installation Note: 4SD

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Push the bracket onto the trunk lid as shown in the illustration and install.

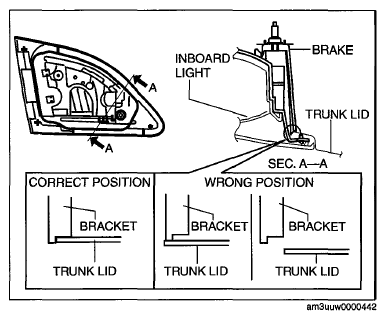

Fig 1: Pushing Bracket Onto Trunk Lid
Courtesy of MAZDA MOTORS CORP.
