Headlight Leveling Switch Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the switch panel in the direction of the arrow shown in the illustration.
  3. Disconnect the connector.

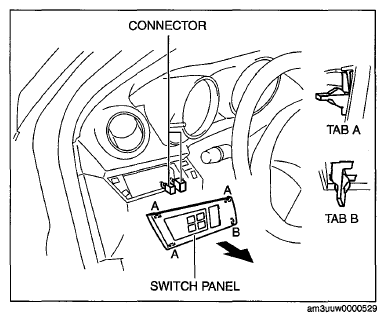

    Fig 1: Removing Switch Panel
    G06732091Courtesy of MAZDA MOTORS CORP.
  4. Remove the headlight leveling switch in the direction of the arrow (2) shown in the illustration while pressing the tabs in the direction of the arrow (1).
  5. Remove the headlight leveling switch.
  6. Install in the reverse order of removal.

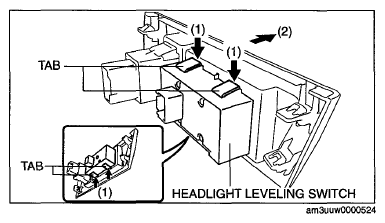

    Fig 2: Removing Headlight Leveling Switch
    G06732203Courtesy of MAZDA MOTORS CORP.
