Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the bolt and fastener shown in the illustration.
  4. Disconnect the connector.

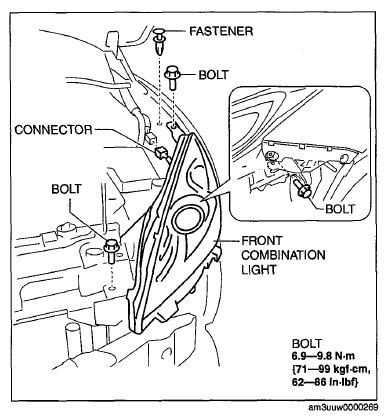

    Fig 1: Front Combination Light, Connector, Bolt And Fastener With Torque Specifications
    G06732068Courtesy of MAZDA MOTORS CORP.
  5. Pull the front combination light in the direction of the arrow shown in the illustration and remove the pin from the body.
  6. Remove the front combination light.

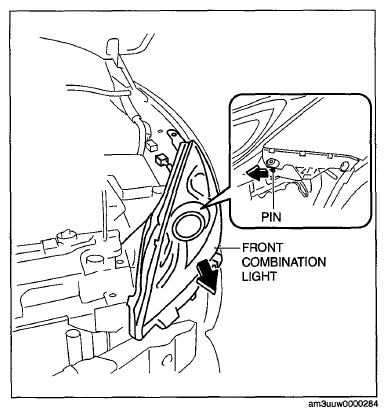

    Fig 2: Pulling Front Combination Light
    G06732069Courtesy of MAZDA MOTORS CORP.
  7. Remove the bolts.
  8. Pull the cover in the direction of the arrow (1) in illustration while detaching tab.

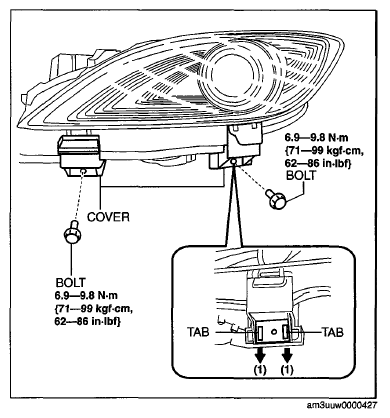

    Fig 3: Pulling Front Combination Light Cover With Torque Specifications
    G06732070Courtesy of MAZDA MOTORS CORP.
  9. Remove the cover from the front combination light.
  10. Install in the reverse order of removal.
  11. Adjust the headlight aiming. (See HEADLIGHT AIMING .)

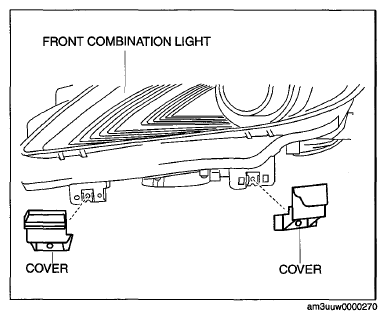

    Fig 4: Identifying Front Combination Light And Cover
    G06732071Courtesy of MAZDA MOTORS CORP.
