Auto Leveling Sensor Removal/Installation: Front

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Lift up the vehicle.
  3. Remove in the order indicated in the table in illustration.

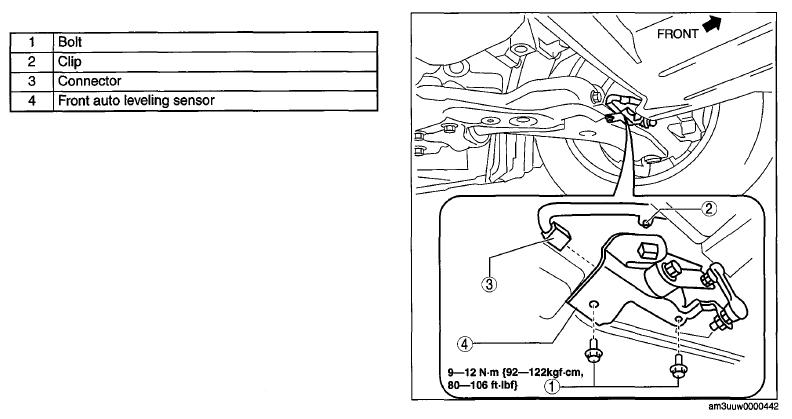

    Fig 1: Front Auto Leveling Sensor, Connector, Clip And Bolt With Torque Specifications
    G06732175Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Perform the auto leveling system initialization. (See AUTO LEVELING SYSTEM INITIALIZATION .)
