Auto Leveling Sensor Inspection

WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the auto leveling sensor. (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
  3. Connect the three dry cell batteries (1.5 V) in a series.
  4. Connect auto leveling sensor terminal A to the battery's minus terminal, and terminal C to the battery's plus terminal, and apply 4.5 V of voltage between terminals A and C.
  5. Connect the tester as shown in the illustration.

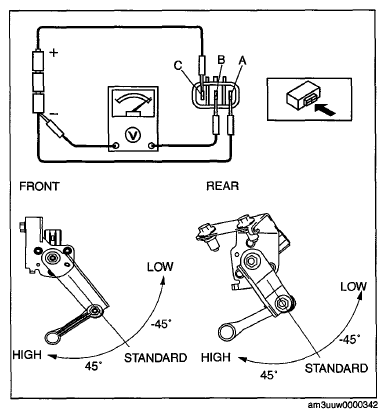

    Fig 1: Inspecting Auto Leveling Sensor
    G06732177Courtesy of MAZDA MOTORS CORP.
  6. When slowly moving the link up and down, verify that the shift is linear while the voltage is 0.5 to 4.5 V.
    • If the voltage cannot be verified as indicated in the graph, replace the auto leveling sensor.

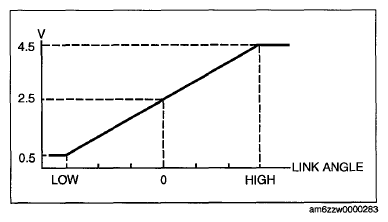

      Fig 2: Auto Leveling Sensor Voltage Graph
      G06732178Courtesy of MAZDA MOTORS CORP.
