Pulley Disassembly/Assembly Note

  1. Disassemble/assemble the pulley using the SST.

    Tightening torque

    60-85 N.m {6.2-8.6 kgf.m, 45-62 ft.lbf}

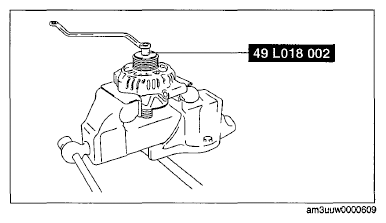

    Fig 1: Disassembling/Assembling Pulley Using SST
    G06732999Courtesy of MAZDA MOTORS CORP.
