Vehicles Without Power Seat Control Module

  1. Disconnect the rear tilt motor connector.
  2. Apply battery positive voltage to the rear tilt motor terminals and inspect the rear tilt motor operation
    • If not as specified, replace the front seat slide adjuster.
    Motor operation Connection
    B+ GND
    Up B D
    Down D B

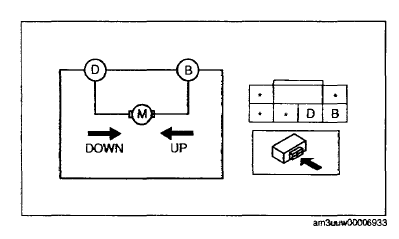

    Fig 1: Checking Rear Tilt Motor (Vehicles Without Power Seat Control Module)
    G07875348Courtesy of MAZDA MOTORS CORP.
