Keyless Control Module Connector End View

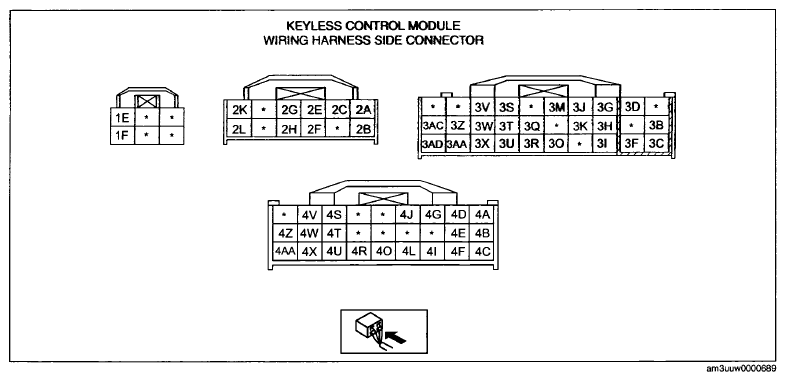

Fig 1: Keyless Control Module Connector End View

G07875497

Courtesy of MAZDA MOTORS CORP.
