Selector Lever component Removal/Installation

1. Disconnect the selector lever component connector.
   1. Disconnect the negative battery cable.
   2. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
   3. Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION .)
   4. Disconnect the selector lever component connector.
2. Remove the selector lever component.

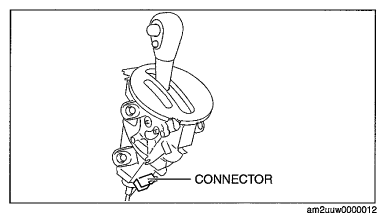

   Fig 1: Identifying Selector Lever Component Connector

   Courtesy of MAZDA MOTORS CORP.
   1. Disconnect the interlock cable from the selector lever component.

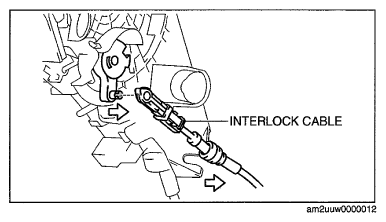

      Fig 2: Disconnecting Interlock Cable From Selector Lever Component

      Courtesy of MAZDA MOTORS CORP.
   2. Disconnect the selector cable from the selector lever component.

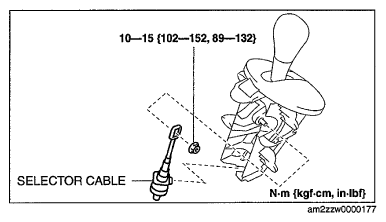

      Fig 3: Selector Cable With Torque Specifications

      Courtesy of MAZDA MOTORS CORP.
   3. Remove the selector lever component.
3. Install in the reverse order of removal.

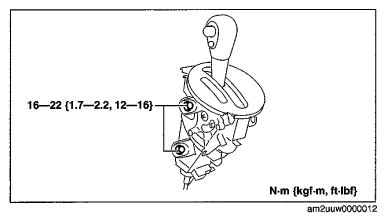

Fig 4: Selector Lever Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
