Satellite Digital Audio Receiver System (SDARS) Module Removal/Installation

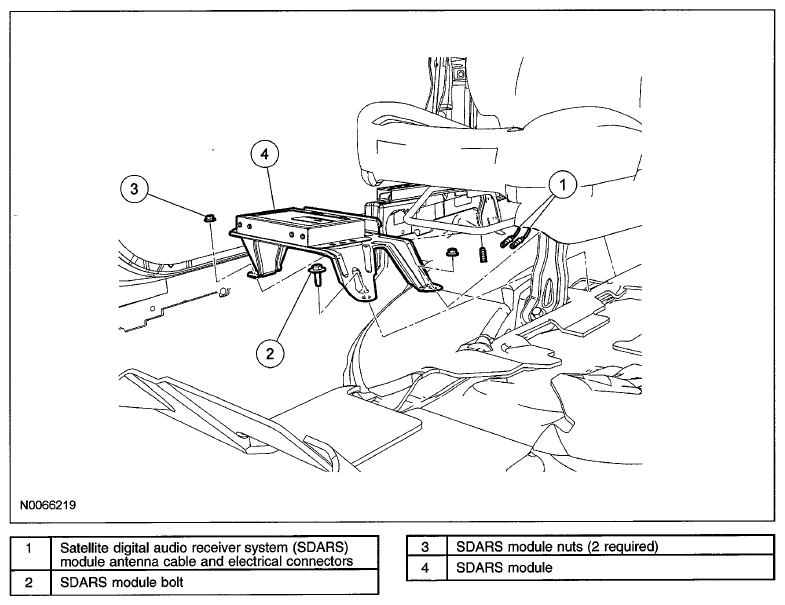

Fig 1: Exploded View Of Satellite Digital Audio Receiver System (SDARS) Module

Courtesy of MAZDA MOTORS CORP.

1. Upload the satellite digital audio receiver system (SDARS) module configuration to the scan tool. See PROGRAMMABLE MODULE INSTALLATION .
   NOTE:

   • Module configuration is required when a new SDARS module is being installed.
2. Disconnect the SDARS module antenna cable and electrical connectors.
3. Remove the 2 nuts, the bolt, and the SDARS module.
   NOTE:

   • Move the passenger seat all the way back to access the SDARS module.
4. To install, reverse the removal procedure.
   • Download the configuration information to the SDARS module. See PROGRAMMABLE MODULE INSTALLATION .
