Front Display Interface Module (FDIM) Removal/Installation

WARNING: This page is about a different variant/trim than selected.

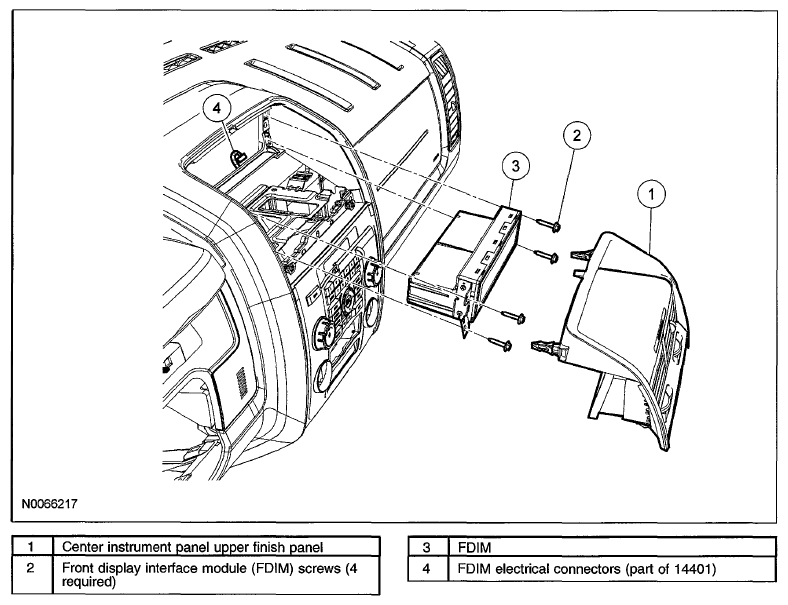

Fig 1: Exploded View Of Front Display Interface Module (FDIM)

G06765955

Courtesy of MAZDA MOTORS CORP.

Remove the center instrument panel upper finish panel by pulling straight back.
Remove the 4 front display interface module (FDIM) screws.
Remove the FDIM.
- Disconnect the electrical connector.
To install, reverse the removal procedure.
