Connector End Views - Starting System

Fig 1: Identifying 0119 - 01 Starter Motor (B) Connectors

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying 0119 - 02 Starter Motor (B) Connectors

Courtesy of MAZDA MOTORS CORP.

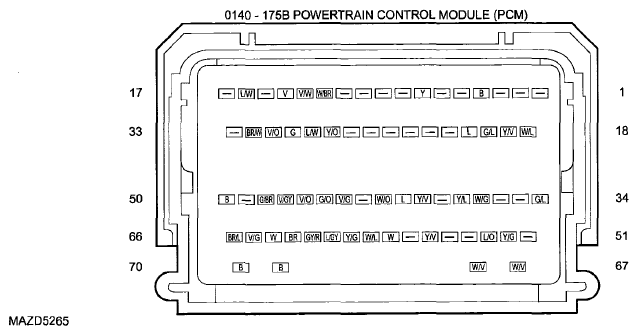

Fig 3: Identifying 0140 - 175B Powertrain Control Module (PCM) Connectors

Courtesy of MAZDA MOTORS CORP.

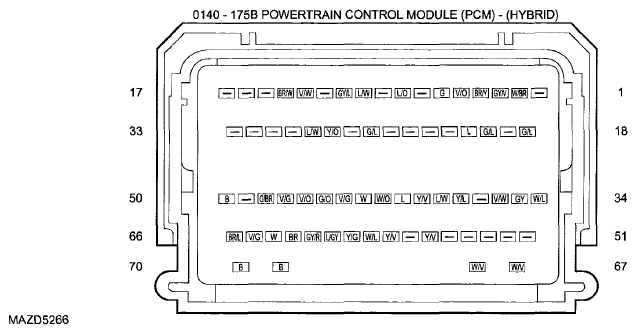

Fig 4: Identifying 0140 - 175B Powertrain Control Module (PCM) - (Hybrid) Connectors

Courtesy of MAZDA MOTORS CORP.

Fig 5: Identifying 0918 - 601 Reversing Lamp, Left Connectors

Courtesy of MAZDA MOTORS CORP.

Fig 6: Identifying 0119 - 04 Clutch Cutoff Switch Connectors

Courtesy of MAZDA MOTORS CORP.
