Map Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the screws.
Remove the map light. (See MAP LIGHT REMOVAL NOTE .)
Disconnect the connector.
Remove the socket, then remove the map light bulb.
Install in the reverse order of removal.

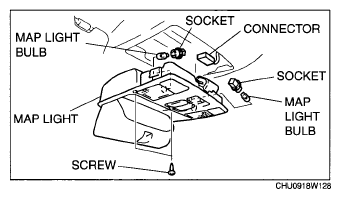

Fig 1: Identifying Map Light And Bulb

Courtesy of MAZDA MOTORS CORP.
