Passenger Compartment Temperature Sensor Connector End View

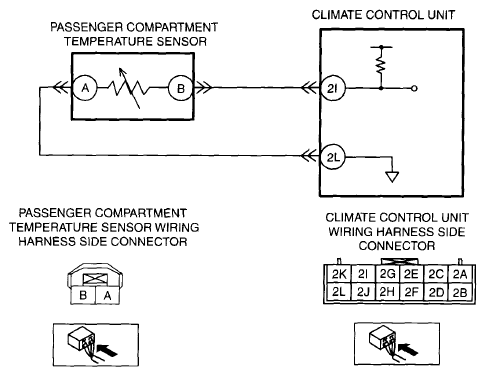

Fig 1: Passenger Compartment Temperature Sensor Connector End

G06206036

Courtesy of MAZDA MOTORS CORP.
