Slide Motor Inspection

  1. Disconnect the slide motor connector.
  2. Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation.
    • If not as specified, replace the slide motor.
      SLIDE MOTOR OPERATION CONDITIONS

      Motor operation Connection
      B+ GND
      Forward A B
      Backward B A

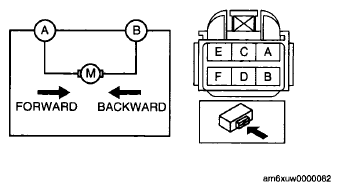

      Fig 1: Inspecting Sliding Motor
      G06200841Courtesy of MAZDA MOTORS CORP.
