Rear Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Rear package tray lid (See REAR PACKAGE TRAY LID REMOVAL/INSTALLATION ).
    2. Sub-trunk
    3. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION ).
    4. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    5. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION ).
    6. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION ).
    7. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION ).
    8. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table. LED type

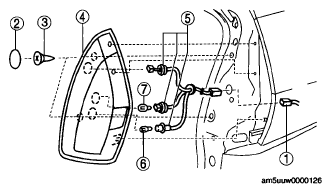

    Fig 1: Identifying Rear Combination Light Remove / Install Components (Led Type)
    G05545888Courtesy of MAZDA MOTORS CORP.
