Map Light Inspection

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the map light terminals is as indicated in the table.
- If not as indicated in the table, replace the map light.

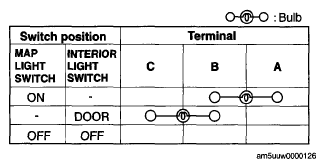

  Fig 1: Map Light Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

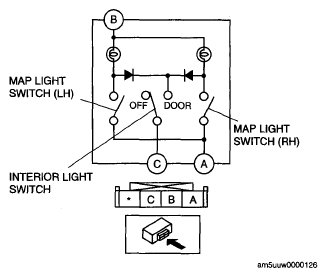

  Fig 2: Map Light - Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
