Lighting Systems Location Index

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

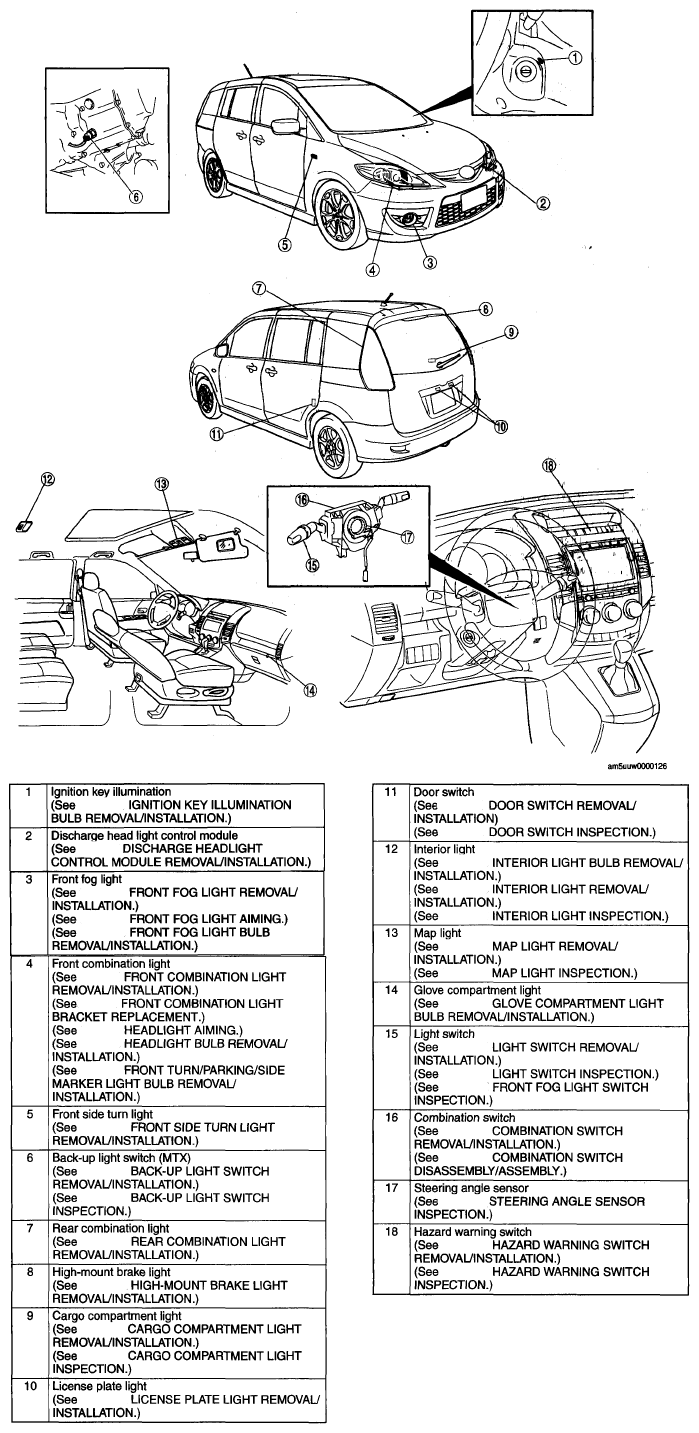

Fig 1: Identifying Lighting Systems Components Location
G05545867Courtesy of MAZDA MOTORS CORP.
