Light Switch Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the meter hood.(See METER HOOD REMOVAL/INSTALLATION ).
  4. Remove the column cover.(See COLUMN COVER REMOVAL/INSTALLATION ).
  5. Disconnect the light switch connector.
  6. Remove the screws, then remove the light switch. light switch
  7. Install in the reverse order of removal. connector

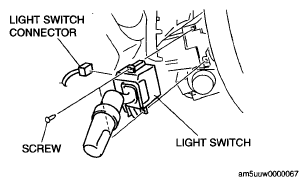

    Fig 1: Identifying Light Switch And Light Switch Connector
    G05545899Courtesy of MAZDA MOTORS CORP.
