Light Switch Inspection: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the light switch terminals is as indicated in the table.
Light Switch
- If not as indicated in the table, replace the light switch.

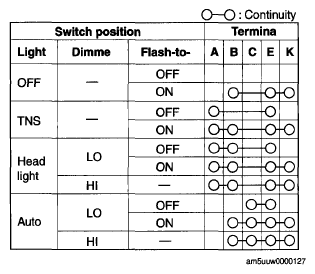

  Fig 1: Light Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

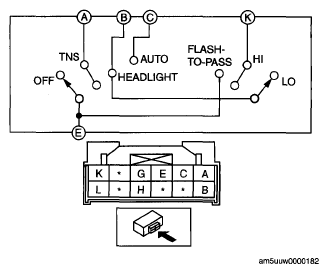

  Fig 2: Light Switch - Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
