Front Fog Light Aiming

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make a headlight adjustment screen as shown in the figure using double-weight, white paper.
  2. Adjust the tire pressure to the specification.
  3. Position the unloaded vehicle on a flat, level surface.
  4. Seat one person in the driver's seat.
    Fig 1: Adjusting Tire Pressure To Specification
    G04971488Courtesy of MAZDA MOTORS CORP.
  5. Line up the headlights with the white screen at a distance of 3 m {9.8 ft}  apart.
  6. Place an object in front of the fog light not being adjusted to block its light beam.
  7. Start the engine so that the battery remains charged.
  8. Turn the front fog lights on.

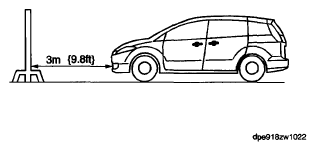

    Fig 2: Adjusting Headlights With White Screen
    G05545884Courtesy of MAZDA MOTORS CORP.
  9. Remove the adjusting bolt and cut the front fog light hole cover at the position shown in the figure.
  10. Loosen the screw, move the front fog light in the direction of the arrows, and adjust the center of the front fog light to the position shown in the figure.
  11. Install the adjusting bolt and tighten the screw.

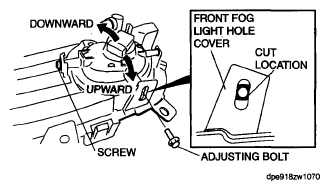

    Fig 3: Identifying Front Fog Light Hole Cover
    G05545885Courtesy of MAZDA MOTORS CORP.
