Discharge Headlight Control Module Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS )
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION ).
  4. Remove screws.
  5. Disconnect the connector.
  6. Remove the discharge headlight control module.
  7. Install in the reverse order of removal.

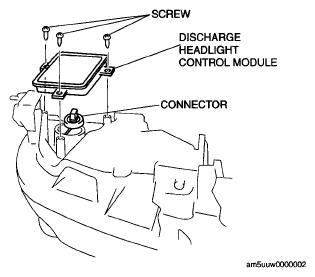

    Fig 1: Identifying Discharge Headlight Control Module Remove / Install Components
    G05545878Courtesy of MAZDA MOTORS CORP.
