Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

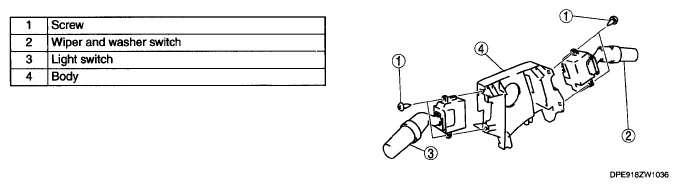

    Fig 1: Identifying Wiper Switch And Light Switch With Screw
    G05545898Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
