5 Touring, 2.3 L
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Abs System Wiring Diagram
Abs System Wiring Diagram

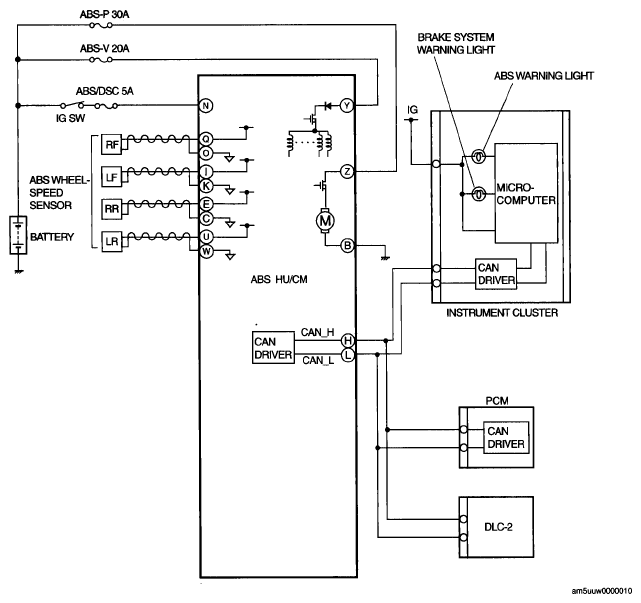

Fig 1: ABS System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
