Dynamic Stability Control System Wiring Diagram

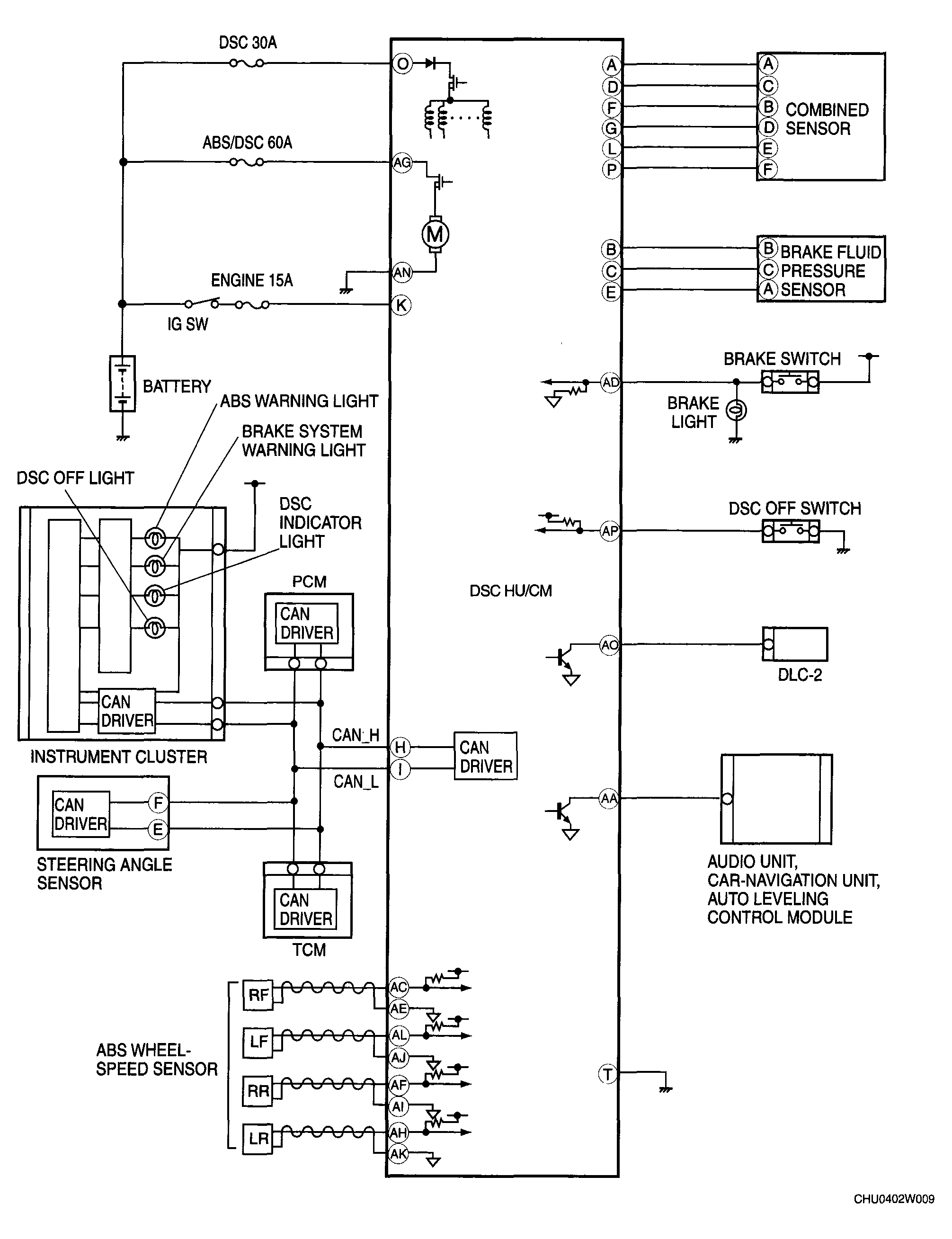

Fig 1: Dynamic Stability Control System - Wiring Diagram

G04563329

Courtesy of MAZDA MOTORS CORP.
