DTC C2778 [Dynamic Stability Control]: Notes
DTC C2778 DETECTION CONDITION AND POSSIBLE CAUSE
| DTC C2778 |
Steering angle sensor (abnormal battery voltage) |
| DETECTION CONDITION |
- The steering angle sensor detects an abnormality (open circuit) in the battery power supply (constant power supply).
|
| POSSIBLE CAUSE |
- BTN 30 A fuse malfunction
- DSC 7.5A fuse malfunction

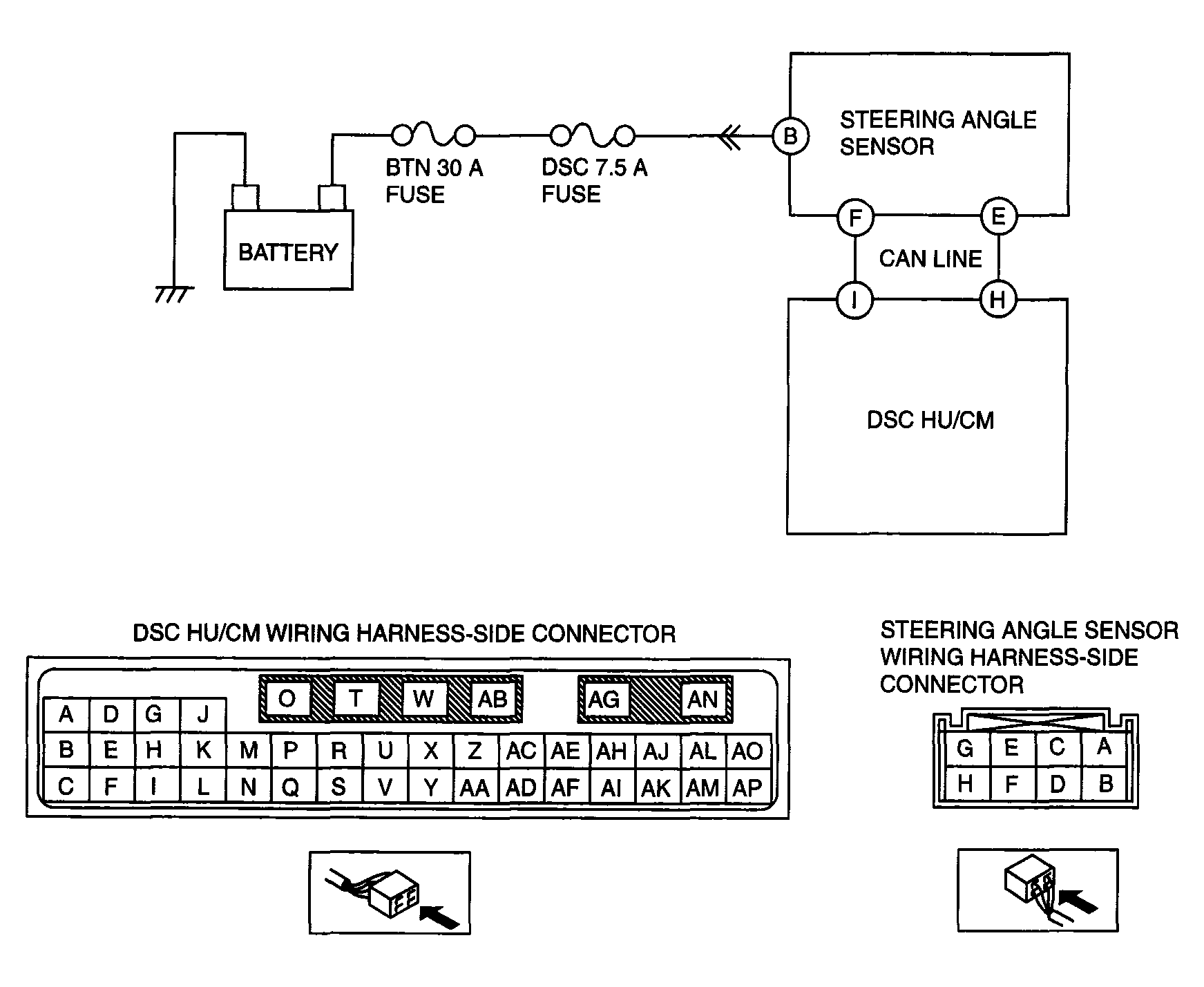

- Open circuit in the wiring harness between the battery and steering angle sensor terminal B
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
