DTC C1093 [Dynamic Stability Control]: Notes

DTC C1093 DETECTION CONDITION AND POSSIBLE CAUSE

DTC C1093 DSC OFF switch
DETECTION CONDITION
  • Continuous ON signal from the DSC OFF switch for 5 s or more  is detected.
POSSIBLE CAUSE
  • The driver pressed and held the DSC OFF switch for 5 s or more.
  • Short to ground in the wiring harness between the DSC HU/CM terminal AP and the DSC OFF switch terminal C
  • DSC OFF switch malfunction

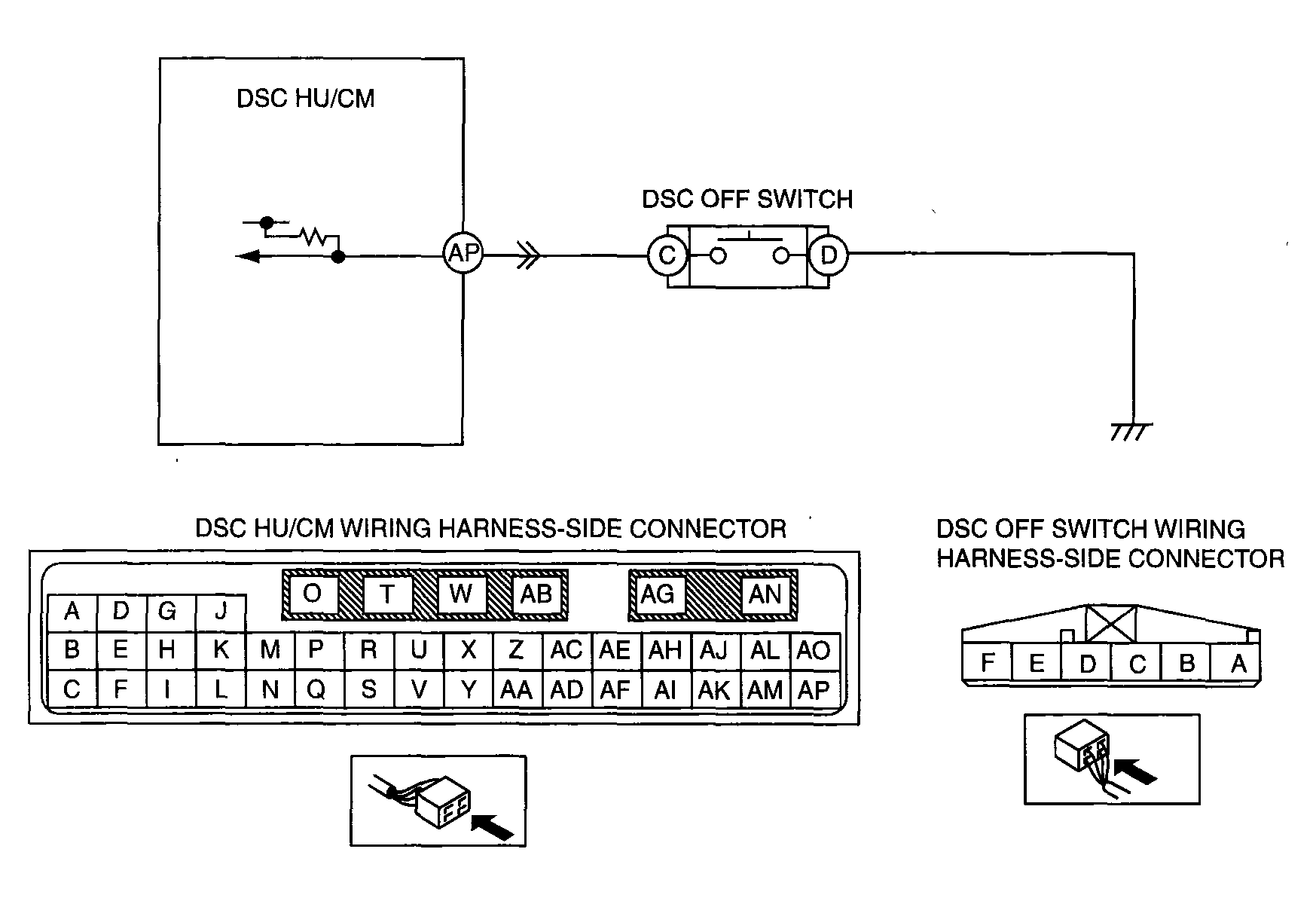

G04563335Courtesy of MAZDA MOTORS CORP.
