Selector Lever Inspection
- Turn the ignition switch to the ON position, (engine OFF)

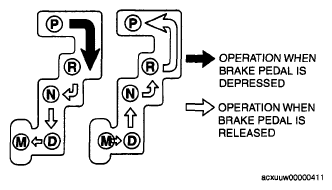

- With the brake pedal depressed, verify that there is a "click" at each range when shifted.
- Verify that the selector lever can be shifted.
- Verify that there is a "click" at each position when shifted from P position to M range.
Courtesy of MAZDA MOTORS CORP.

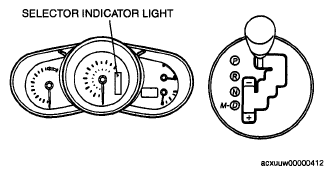

- Verify that the positions of the selector lever and the indicator are aligned.
- Verify that the vehicle operates in each selected range.
Courtesy of MAZDA MOTORS CORP.
